Leading Biomass Plant CONSTRUCTOR

Danish Energy Systems (DES) - Your Expert in Biomass Fired Boiler Plants

Innovative Biomass Plant Constructor

Danish Energy Systems (DES) pioneers the construction of biomass-fired boiler plants, utilizing over 50 years of expertise. Specializing in tailor-made combustion equipment for diverse biomass types like straw, wood chip, and agricultural waste, DES leads the industry in innovation. With a global reach, DES delivers cutting-edge biomass combustion solutions directly to end-users and suppliers worldwide. Partnering with clients to create custom bio-waste heat systems, DES offers turnkey plants to meet unique specifications. Experience excellence worldwide with DES.

Our Unique Services

Discover our specialized offerings tailored to meet diverse biomass needs.

Custom Boiler Design

Tailor-made boiler solutions for various biomass types.

Turnkey Plant Solutions

Complete plant installations from design to commissioning.

Expert Manufacturing

High-quality combustion equipment crafted for durability and efficiency.

Global Supply Network

Direct delivery to customers and suppliers worldwide.

Clean & efficient

Biomass fired boiler plants

Danish Energy Systems designs, develops,
manufactures and installs complete boiler
plants based on biomass fuel. We also supply
individual and tailor-made equipment to a large
number of European boiler manufacturers and
suppliers of biomass fuel.

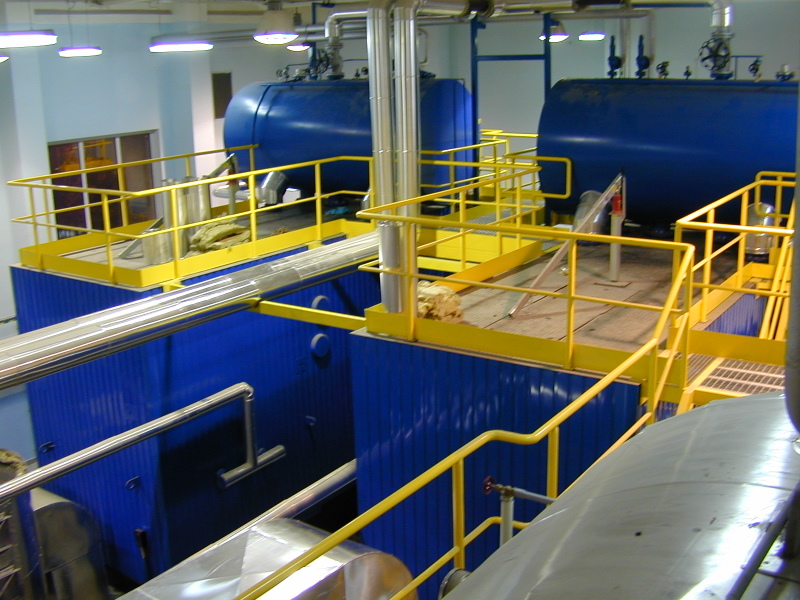

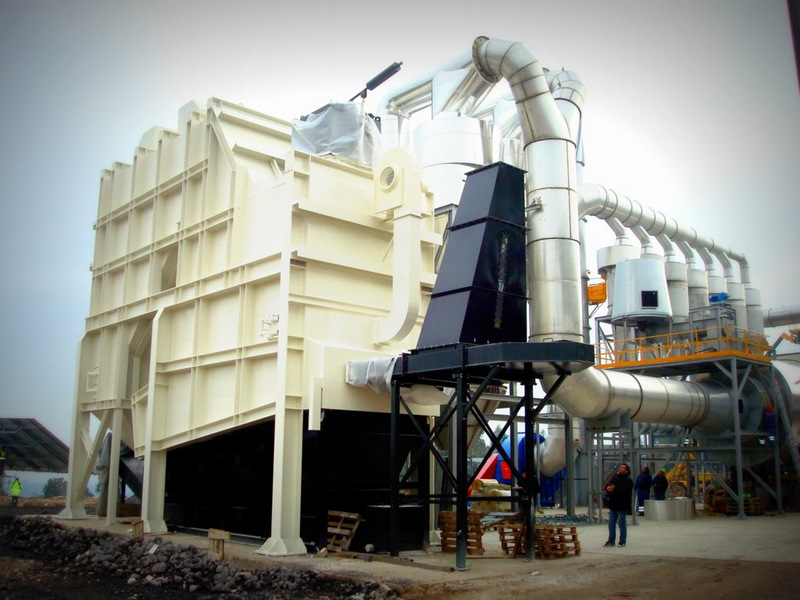

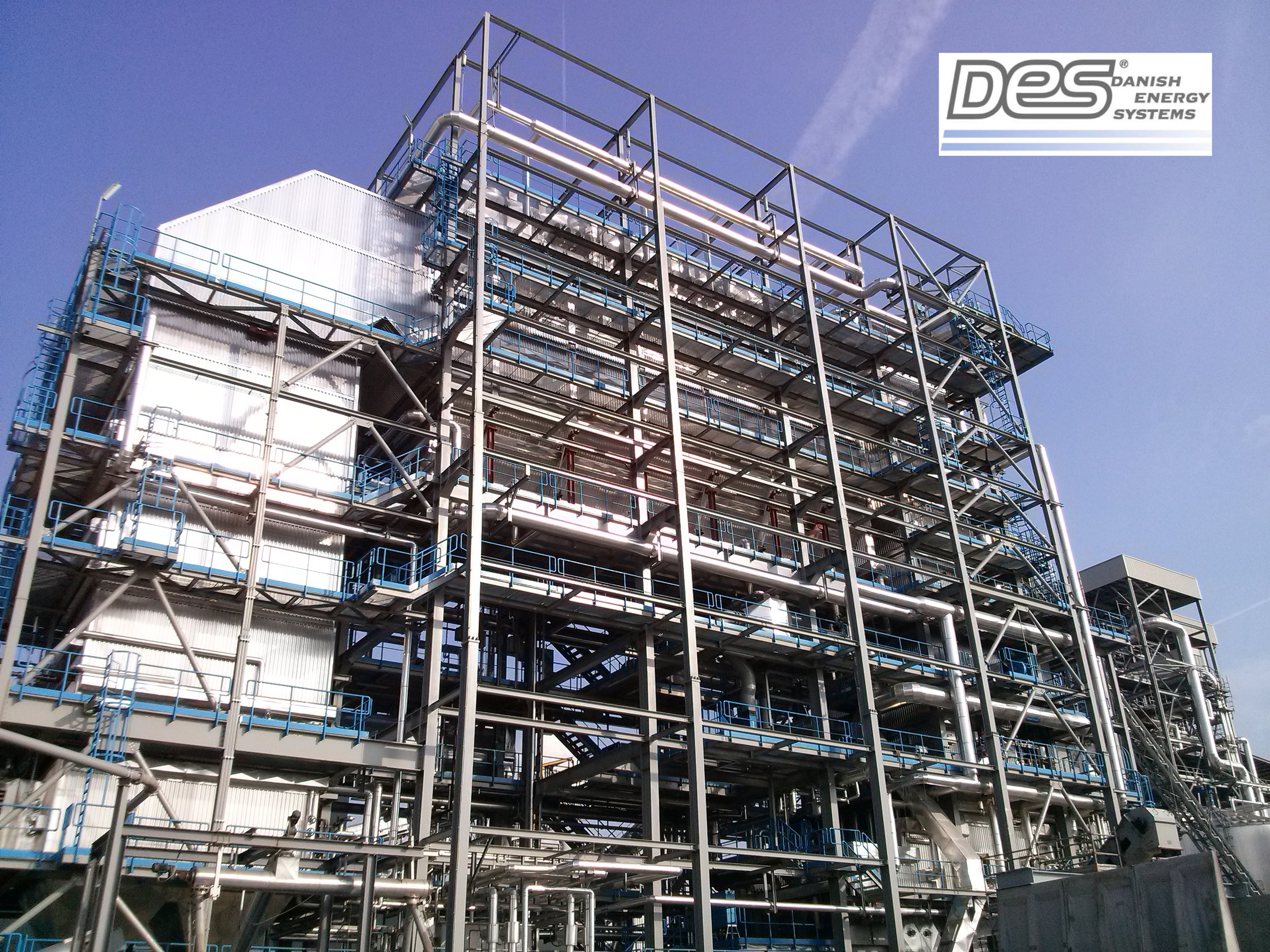

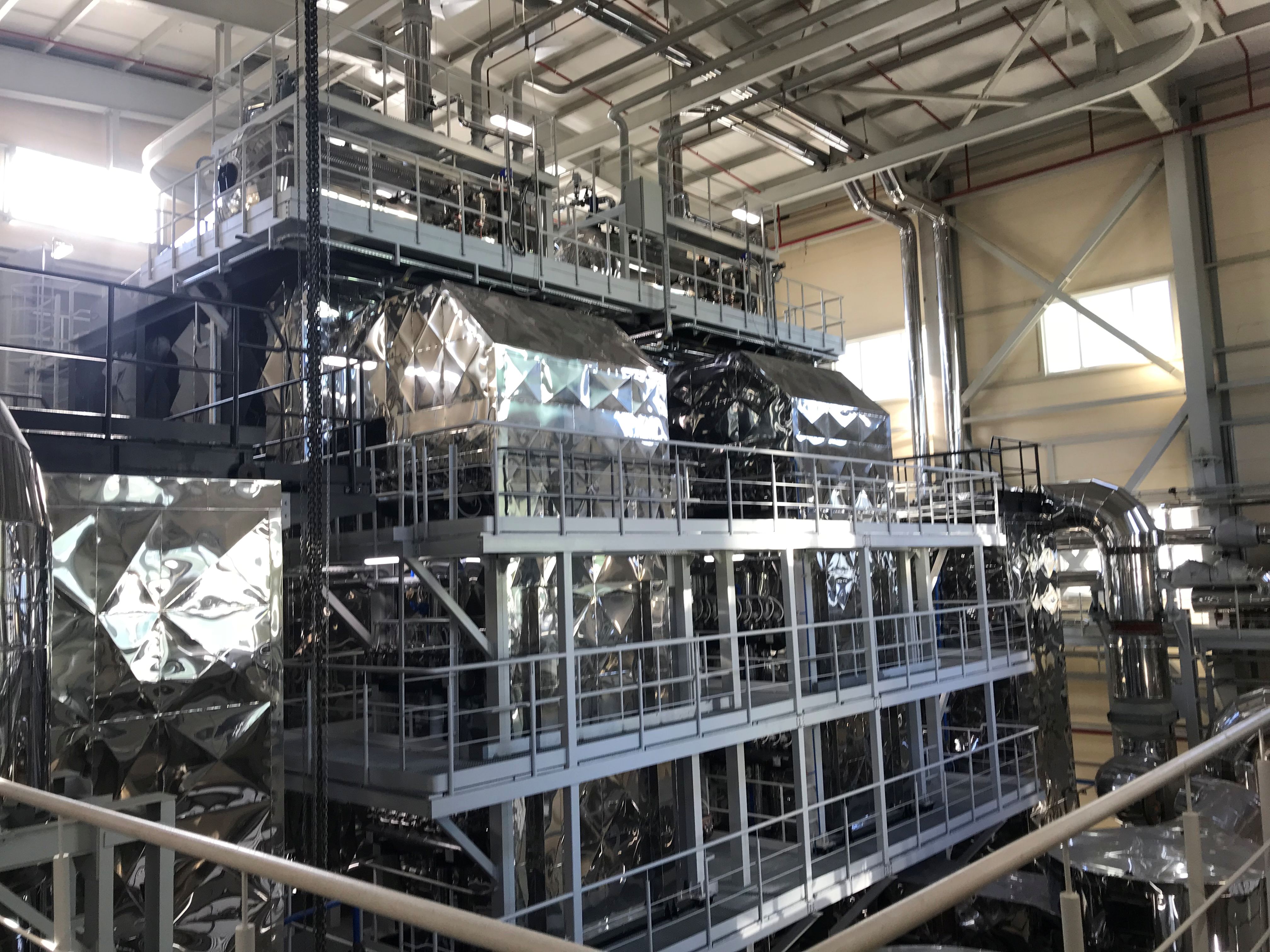

Below you can see examples from biomass fired
boiler plants designed by DES.

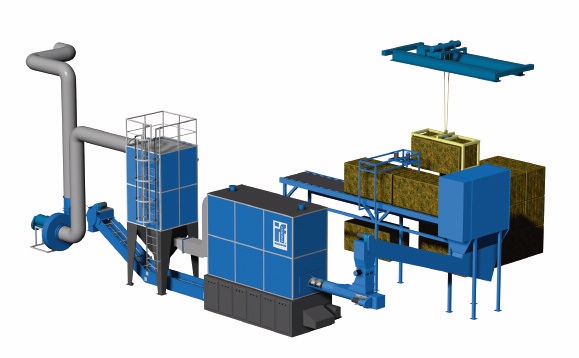

STRAW & AGRICULTURE WASTE

Boiler plants utilising straw and agriculture waste fuel are designed to handle fuels with a water content of max. 25 %. The attached straw bale system can operate all sizes and types of straw bales. The bag house downstream of the boiler plant secures an optimal de-dusting of the waste gases.


Wheat, barley, corn stower, soya, sunflower hulls, agriculture pellets etc.

Heat value from 13.800 – 15.000 kJ/kg

Boiler plant sizes from 1 - 50 MW

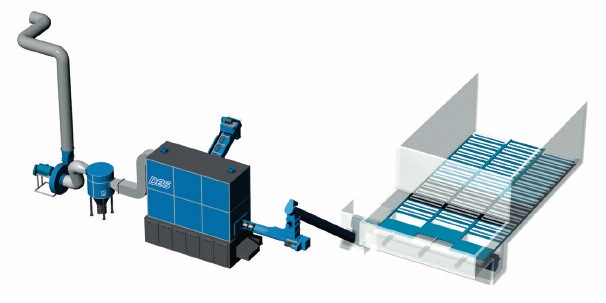

WOOD CHIPS & SHAVINGS

This type of plant is designed for biomass fuels with a medium content of water. The boiler plant is connected with an upstream attached drying system. The incineration of wood chips and shavings results in dust sizes exceeding 10 micrograms so the installation of a multicyclone is required.


Shavings, sawdust, wood waste, wood chip, bark, peat etc.

Heat value from 7.000 – 15.000 kJ/kg

Boiler plant sizes from 1 – 50 MW

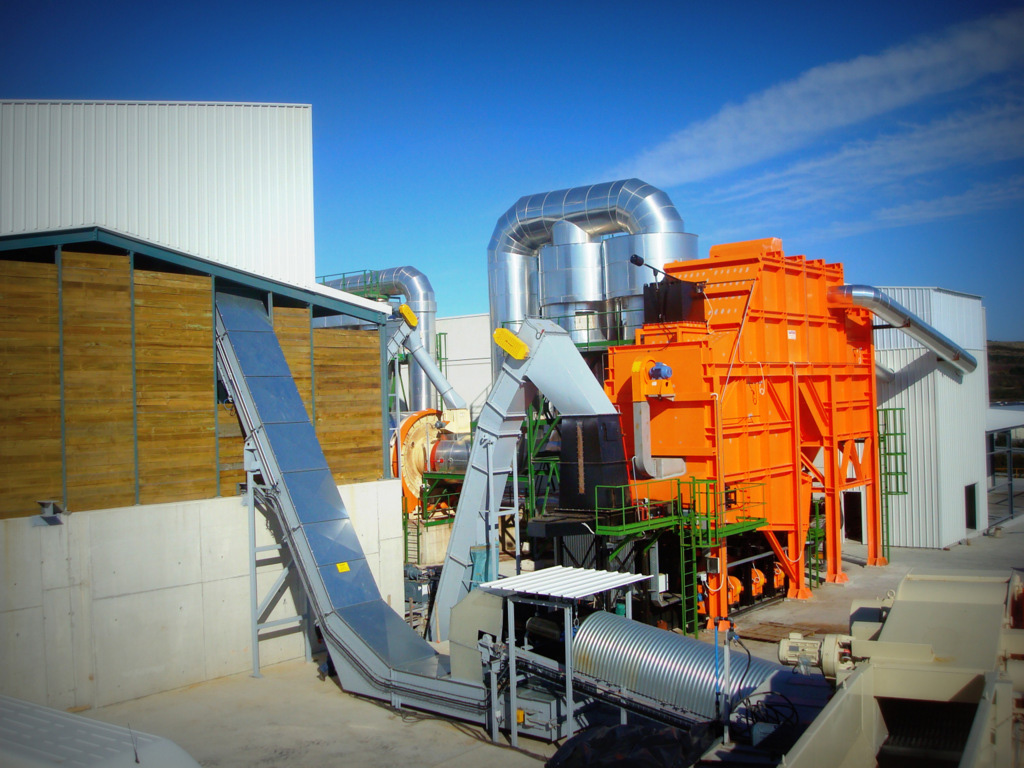

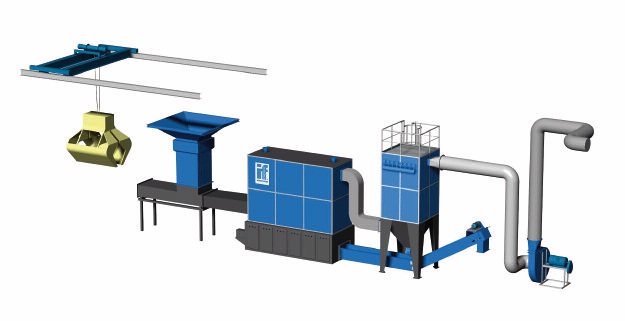

WOOD WASTE

Plants for wood waste utilisation are usually equipped with a hydraulic fuel feeder ensuring an exact fuel distribution. The boiler systems are especially designed for biomass fuel with a high water- and ash content. DES wood waste biomass plants avoid air pollution by using state-of-the-art bag houses.


Wood waste, wood chip, bark, sawdust, peat, wood pellets etc.

Heat value from 3.500 – 12.000 kJ/kg

Boiler plant sizes from 1 to 50 MW

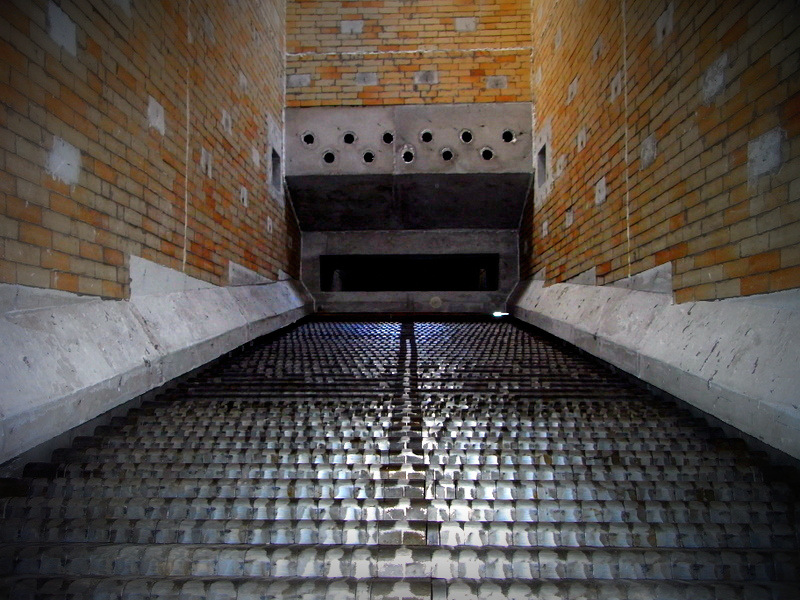

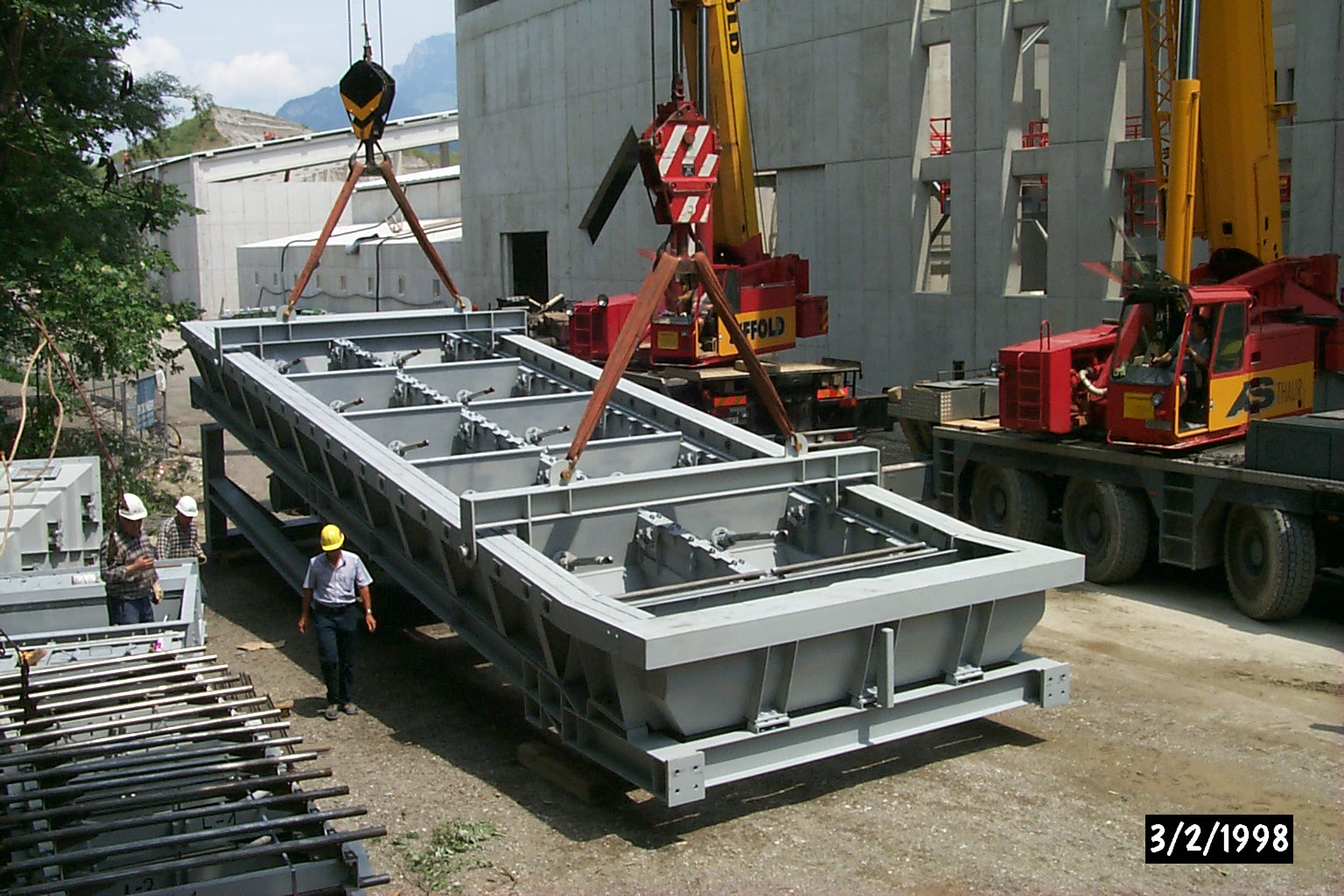

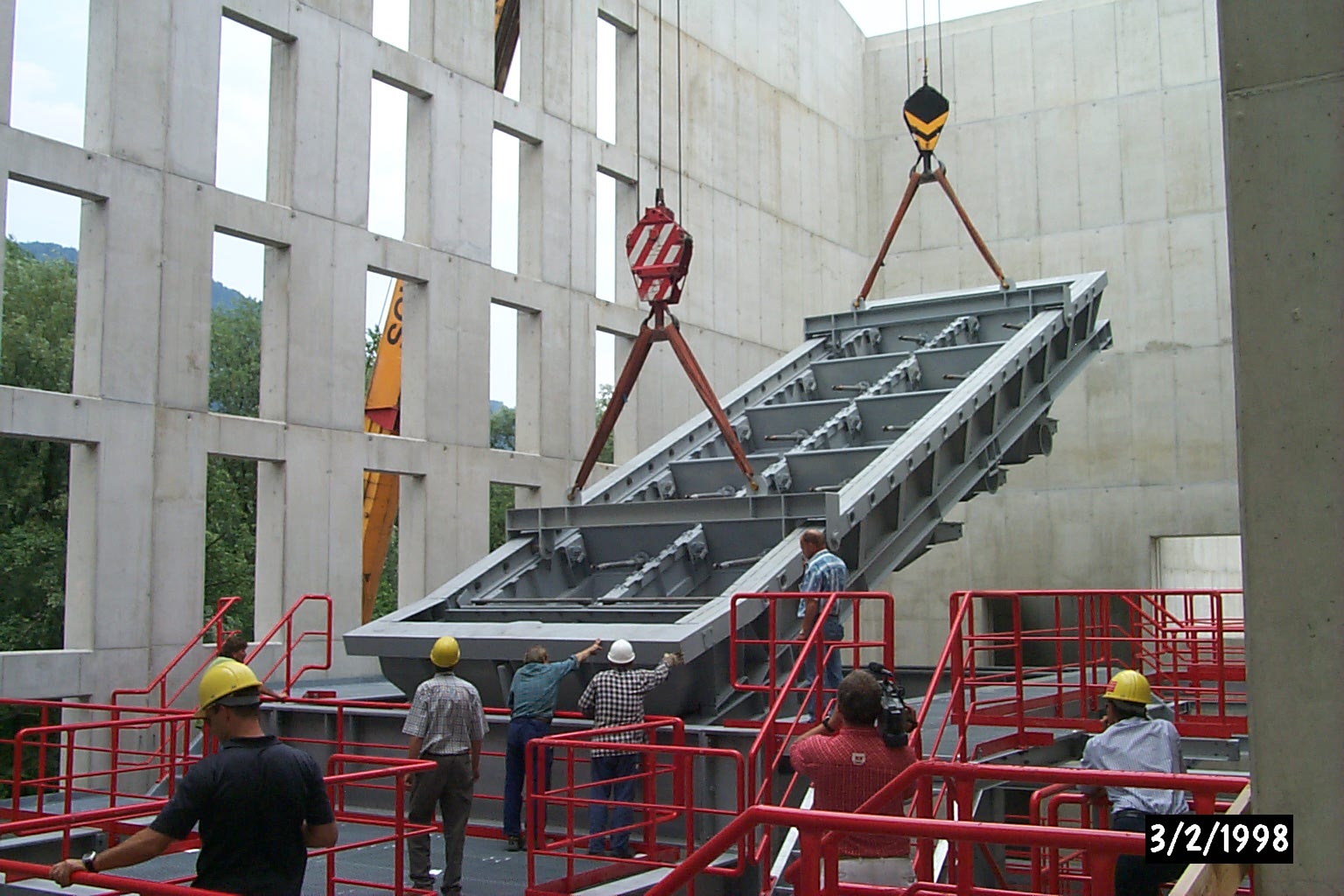

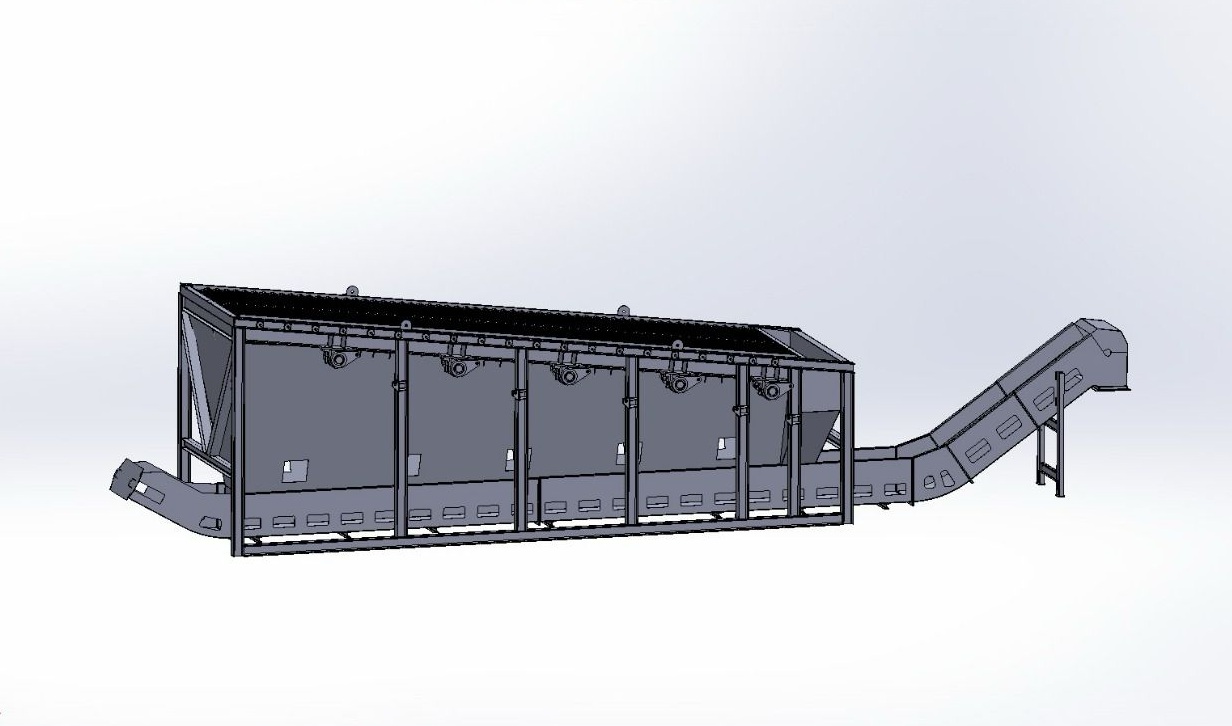

Combustion grates


DES supplies combustion grates to a number of leading European boiler manufacturers and can therefore rely on established experience in utilising many kinds of biomass fuel. Our combustion grates are equipped with 100 % divided drying zones as well as combustion and cooling zones. This system secures an optimal control of the incineration process. All combustion zones are running independently from combustion air as well as belt speed and are installed among the most used combustion grates in Europe.
The grate bars are cast from special steel and contain a minimum 28 % of chrome and 1 % of nickel allowing a combustion temperature of more than 1.100 °C on the combustion bars.
All combustion grates are fabricated individually for the specific fuel requirements of the customer. We consider many factors for the grate design e.g. heat value, ash amount, ash melting point, chloride levels, hydrocarbon etc.
Combustion grates can be delivered with grate areas from 1 - 70 m2.

Hot Gas GeneratorS

DES Direct Dryer Hot Gas Generator is a system that produces high-temperature gases for direct contact with biomass or other materials in a drying process. These systems are commonly used in industries like wood processing, agriculture, and biomass pellet production.

Key Features of a Direct-Fired Hot Gas Generator


Fuel Flexibility

Can use biomass (wood chips, sawdust, pellets, rice husk, bagasse, etc.). Biomass-based systems are cost-effective and environmentally friendly.

Combustion Chamber Design

Uses refractory-lined combustion chambers for high-temperature resistance. Burners can be fixed or modulating to control the temperature output.

Dust & Emission Control

Cyclone separators, bag filters, or scrubbers can be added to minimize emissions. Systems includes low-NOx combustion technology to reduce pollutants.

Preventive maintenance

Preventive maintenance of a combustion grate is essential to ensure efficient operation, reduce downtime, and extend the lifespan of the system.

Weekly Maintenance

  • Grate Movement Test: If the grate has moving parts, test them for smooth operation.

  • Inspection of Seals and Gaps: Ensure proper sealing to prevent unwanted air ingress.

  • Burner and Flame Inspection: Verify that the flame is burning cleanly without excessive smoke or incomplete combustion.

  • Temperature Monitoring: Check for hotspots or cold areas that may indicate airflow issues.

Monthly Maintenance

  • Detailed Grate Surface Inspection: Look for cracks, warping, or excessive thinning due to heat and mechanical stress.

  • Tightening of Bolts and Fasteners: Ensure all mechanical connections are secure.

  • Inspection of Cooling System (if applicable): Check for leaks or blockages in water-cooled grates.

Quarterly Maintenance

  • Deep Cleaning: Remove built-up deposits and scale from the grate and surrounding components.

  • Check Refractory Lining: Inspect for cracks or damage in the refractory lining around the grate.

  • Verify Control System Functionality: Ensure sensors, actuators, and other control elements are working correctly.

  • Check Exhaust and Emissions: Verify compliance with emission standards and clean filters or scrubbers.

Annual Maintenance

  • Full System Inspection: Conduct a thorough review of the grate system, including bearings, chains, and drive mechanisms.

  • Grate Element Replacement: Replace severely worn-out or damaged grate bars.

  • Calibration of Sensors and Controls: Ensure all temperature, pressure, and oxygen sensors are calibrated.

  • Structural Integrity Check: Examine welds, supports, and framework for fatigue or corrosion.

LICENSE PRODUCTION

We offer a licensing opportunity for the production of high-efficiency combustion grates, designed for industrial and commercial heating systems. Our advanced grate technology ensures optimal fuel combustion, reduced emissions, and enhanced durability. The license includes technical documentation, manufacturing guidelines, and ongoing support to ensure seamless production and market entry.

Partner with us to leverage proven technology and expand your product portfolio. Contact us for details on terms and collaboration opportunities.

Why Choose Danish Energy Systems?

Discover the compelling reasons to partner with DES for biomass solutions.

Extensive Experience

Over 50 years of expertise in biomass boiler construction.

Tailor-Made Solutions

Custom-designed combustion equipment for diverse biomass types.

Global Reach

Delivering our systems to clients and suppliers worldwide.

Turnkey Systems

Complete bio-waste heat systems, tailored to meet your specifications.

LATEST NEWS

Danish Energy Systems now joined TIPO Kotlogradnja

TIPO Kotlogradnja DOO or short TIPO was founded in 1979. and has established itself as a pioneering force in the boiler industry in Europe. From its humble beginnings, TIPO embarked on a journey fueled by innovation, dedication to quality, and a commitment to customer satisfaction. Since the very day of its founding, the organization’s main goal and business strategy were established and adhered to, and these can be summed up in as brief a statement as our three-word long motto:

YOUR ENERGY SECURITY

Get in Touch with Us

Contact Danish Energy Systems for inquiries, support, or partnerships.

Denmark

des@des-dk.com

Sun: Closed, Mon-Fri: 8 am-6 pm, Sat: 10 am-4 pm

Frequently Asked Questions

Addressing common inquiries for our biomass boiler solutions.

What types of biomass can be used?

Our combustion equipment is designed for various biomass types, including straw, wood chip, wood waste, agricultural waste, and industrial wastes and sludges.

Do you provide custom solutions?

Yes, we design and engineer tailor-made biomass combustion systems to meet the specific needs of our clients.

Where do you deliver your products?

We supply our biomass combustion equipment internationally to both end consumers and suppliers of biomass fired boiler plants.

What support do you offer after installation?

We provide comprehensive support and maintenance services to ensure optimal performance of your biomass fired systems.

Experience Sustainable Energy Solutions

Join us at Danish Energy Systems for cutting-edge biomass combustion equipment tailored to your needs. Contact us at des@des-dk.com to explore sustainable energy solutions for your business today.
